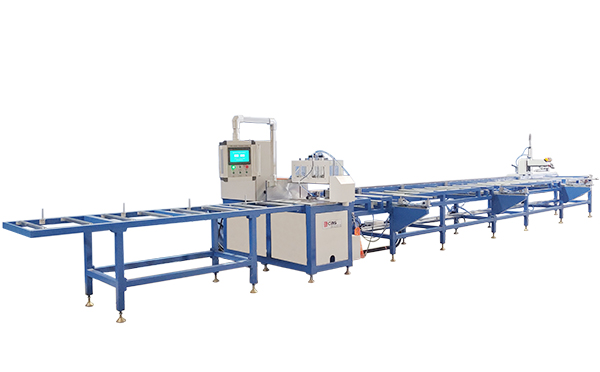

CCSN-500/550 CNC Automatic Aluminium Formwork Cutting Machine
Published by:CBS Industry Co Ltd
Features and functions:
- The machine is suitable for all kinds of large aluminum profiles 90 degree cutting, especial for aluminium formwork profiles cutting.
- The automatic feeding manipulator can take profile and automatically feed according to the cutting list.
- Saw blade feeding adopts linear bearing moving pair, the pneumatic feeding cylinder with hydraulic damping system which features smooth movement and excellent performance.
- Compact structure, small footprint, high machining accuracy and high durability.
- The worktable surface is specially treated for high durable.
- Spray mist cooling system can cool the saw blade fast.
- Extra large cutting range can cut many profile at one time pass through.
- The cutting angle is 90 degrees only.
Technical parameter:
|
Working air pressure |
0.5~0.8mpa |
|
Air consumption |
120L/min |
|
Input voltage |
3-phase, 380v, 50hz |
|
Input power |
4.0kW |
|
Saw Blade Diameter |
500 or 550mm |
|
Saw blade speed |
2800r/min |
|
Max cutting section |
600x 80mm , 450x150mm or 600x95, 450x175mm |
|
Cutting degree |
90 degree |
|
Feeding speed |
<=10m/min |
|
Repeat sizing tolerance |
+/-0.2mm |
|
Degree tolerance |
Less than 5’ |
CCSN-500 CNC Autoamtic Auminium Formwok Cutting Machine ( U panel Cutting Demo)
CCSN-500 CNC Autoamtic Auminium Formwok Cutting Machine
