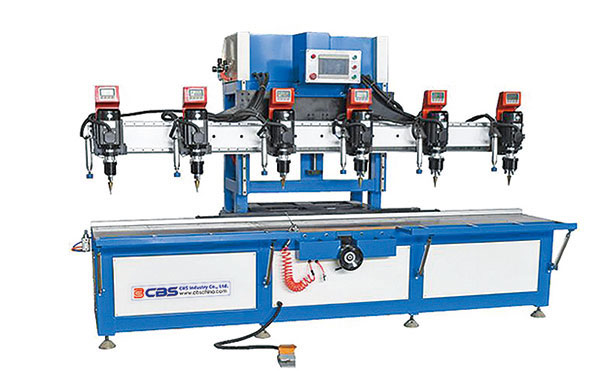

DMF-606 Multi-head Combination Drilling Machine
Published by: CBS Industry Co Ltd
Features and functions:
- The machine is mainly used for aluminium profiles combination holes drilling..
- The feeding system adopt CNC servo control, the holes diameters are CNC adjustable, more accuracy.
- Spindles distance is adjustable, equipped with digital measurement display features easy adjustment and more accuracy also.
- The machine adopt advanced controller, all the drilling heads can work together or selectable according to the real requirement.
Technical parameter:
|
Working air pressure |
0.5~0.8mpa |
|
Air consumption |
100L/min |
|
Input voltage |
3-phase, 380/415v, 50hz |
|
Input power |
11.0kW |
|
Processing profile’s length |
300~6000mm |
|
Processing profile’s width |
50~610 mm |
|
Processing profile’s height |
50~200 mm |
|
Min. distance between nearest two holes |
150mm |
|
Overall dimensions |
6000x1000x1700mm |
